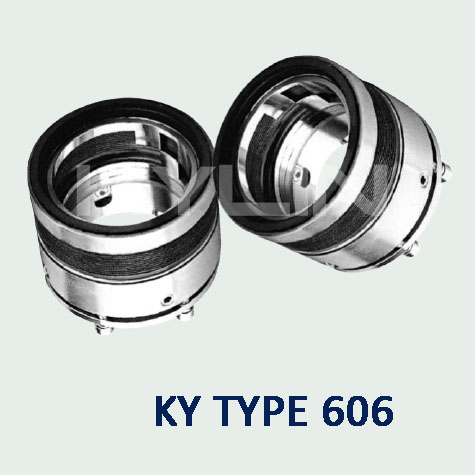

KY TYPE 606, John Crane TYPE 606, Welded Metal Bellow Mechanical Seals
Combined Materials:
Stationary Ring (SiC/SSiC/TC)
Rotary Ring (Carbon/SiC/SSiC/TC)
Secondary Seal (Graphite)
Bellow (AM350/Inconel 718)
Metal Part (SS304/SS316)
Working Conditions:
Mediums: Oil, light hydrocarbon, aromatic hydrocarbon, organic solvents, weak acids, alkali, Ammonia, etc.
Temperature: -75°C~400°C
Pressure: ≤2.0MPa(Single) ≤6.0MPa(Double)
Speed: ≤ 23m/Sec
Download KY TYPE 606, John Crane TYPE 606, Welded Metal Bellow Mechanical Seals.pdf
If you have any questions, please send us an EMAIL about your technical applications.

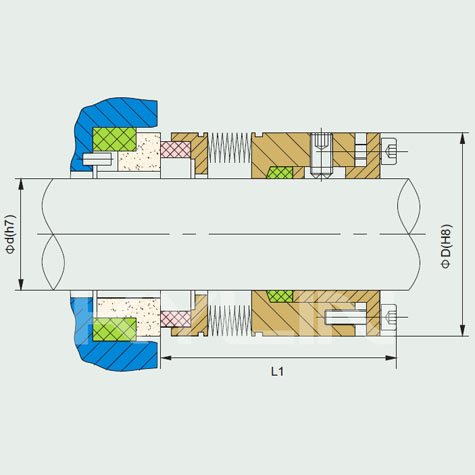

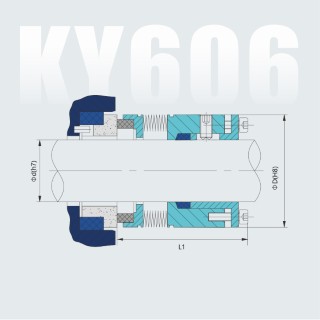

| Part Numbers | d | D | L1 |
| KY TYPE 606-16 | 19.05 | 41.28 | 58.92 |
| KY TYPE 606-18 | 22.23 | 44.45 | 59.71 |
| KY TYPE 606-20 | 25.4 | 47.63 | 59.71 |
| KY TYPE 606-22 | 28.58 | 50.8 | 60.53 |
| KY TYPE 606-24 | 31.75 | 53.98 | 60.53 |
| KY TYPE 606-26 | 34.93 | 57.15 | 62.89 |
| KY TYPE 606-28 | 38.1 | 60.33 | 63.7 |
| KY TYPE 606-30 | 41.28 | 63.5 | 63.7 |
| KY TYPE 606-32 | 44.45 | 66.68 | 64.49 |
| KY TYPE 606-34 | 47.63 | 69.85 | 64.49 |
| KY TYPE 606-36 | 50.8 | 73.03 | 65.27 |
| KY TYPE 606-38 | 53.98 | 76.2 | 65.27 |
| KY TYPE 606-40 | 57.15 | 82.55 | 70.05 |
| KY TYPE 606-42 | 60.33 | 85.73 | 70.84 |
| KY TYPE 606-44 | 63.5 | 88.9 | 70.84 |
| KY TYPE 606-46 | 66.68 | 93.65 | 73.23 |
| KY TYPE 606-48 | 69.85 | 96.82 | 76.4 |
| KY TYPE 606-50 | 73.03 | 101.6 | 76.4 |
| KY TYPE 606-52 | 76.2 | 104.78 | 76.4 |
| KY TYPE 606-54 | 79.38 | 107.95 | 76.4 |
| KY TYPE 606-56 | 82.55 | 111.13 | 76.4 |
| KY TYPE 606-58 | 85.73 | 114.3 | 76.4 |
| KY TYPE 606-60 | 88.9 | 117.48 | 76.4 |
| KY TYPE 606-62 | 92.08 | 120.65 | 76.4 |
| KY TYPE 606-64 | 95.25 | 123.83 | 76.4 |
